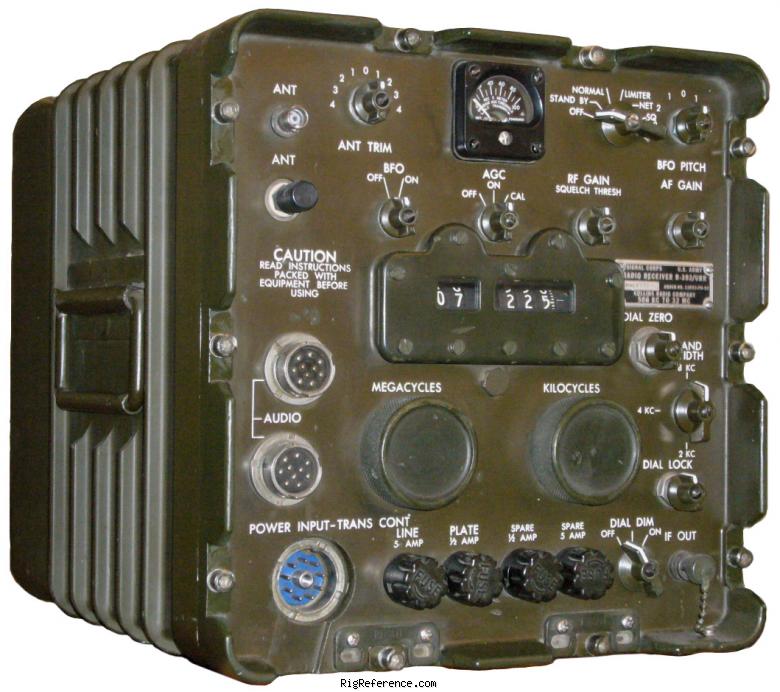

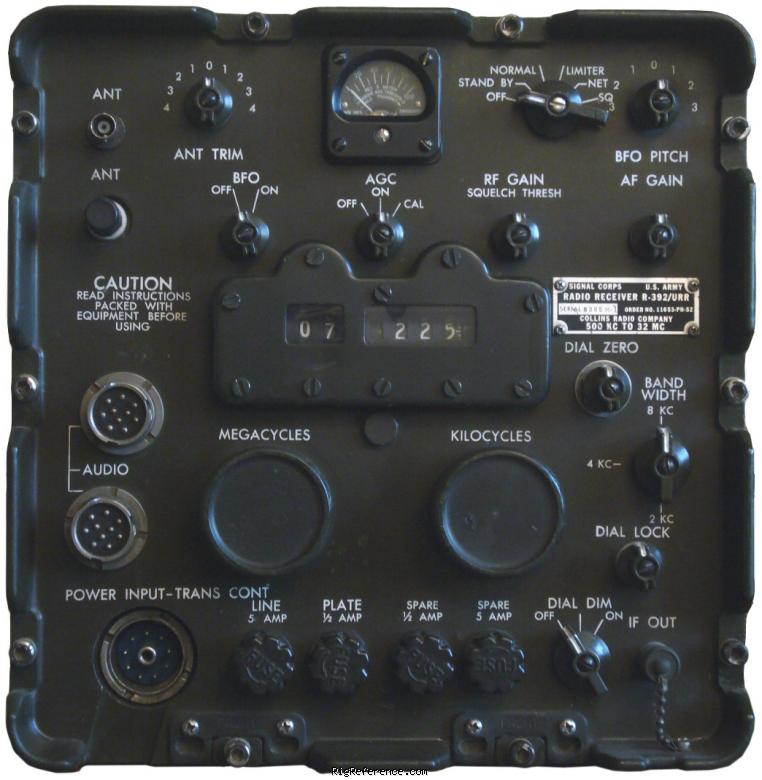

This is the receiver component of another vintage Collins radio system and is usually paired with the T-195 HF transmitter to form GRC-19. It is often said to be a 'little brother' to the venerable R-390 - in the sense that is is ruggedised and simpler but performs just as well. It weighs in at a hefty 55lbs in its water-resistant case and has no power supply of its own - relying on the vehicle it was installed in. It was developed in the late 1940's and fully battle-tried in Korea although stayed in production via Collins licensees (such as Philco, Stewart-Warner and Western Electric) until the mid 1960's.
General characteristics
- HAM bands
- ?
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 0.5-32 MHz
- Modulations
- AM CW
- Sensitivity
- AM: 5-9 µV
CW: 2-3 µV - Selectivity
- ?
- Filters
- ?
- Receiver system
- Double / triple conversion, 25 tubes
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Connections
- Antenna
- -
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 25-28V DC
- Current drain RX
- 3 A max
- TX
- -
Physical
- Dimensions (w×h×d)
- 283 × 293 × 352 mm (11.14 × 11.54 × 13.86 in)
- Weight
- 23.70 kg (52.3 lbs)
- Form factor
- Base Station
- Manufactured
- Between 195x and 195x in USA
Other features
- Usage
- Military communication
- Features + options
- -
- Accessories
- -
- RigReference ID
- 2536
- MPN
- COLLINS-R-000392/URR
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Collins R-392/URR. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic data, today's second-hand price of the Collins R-392/URR is around:
- EUR 110.00
- USD 114.00 ~ USD 15.00
These estimates are based on the following prices:
