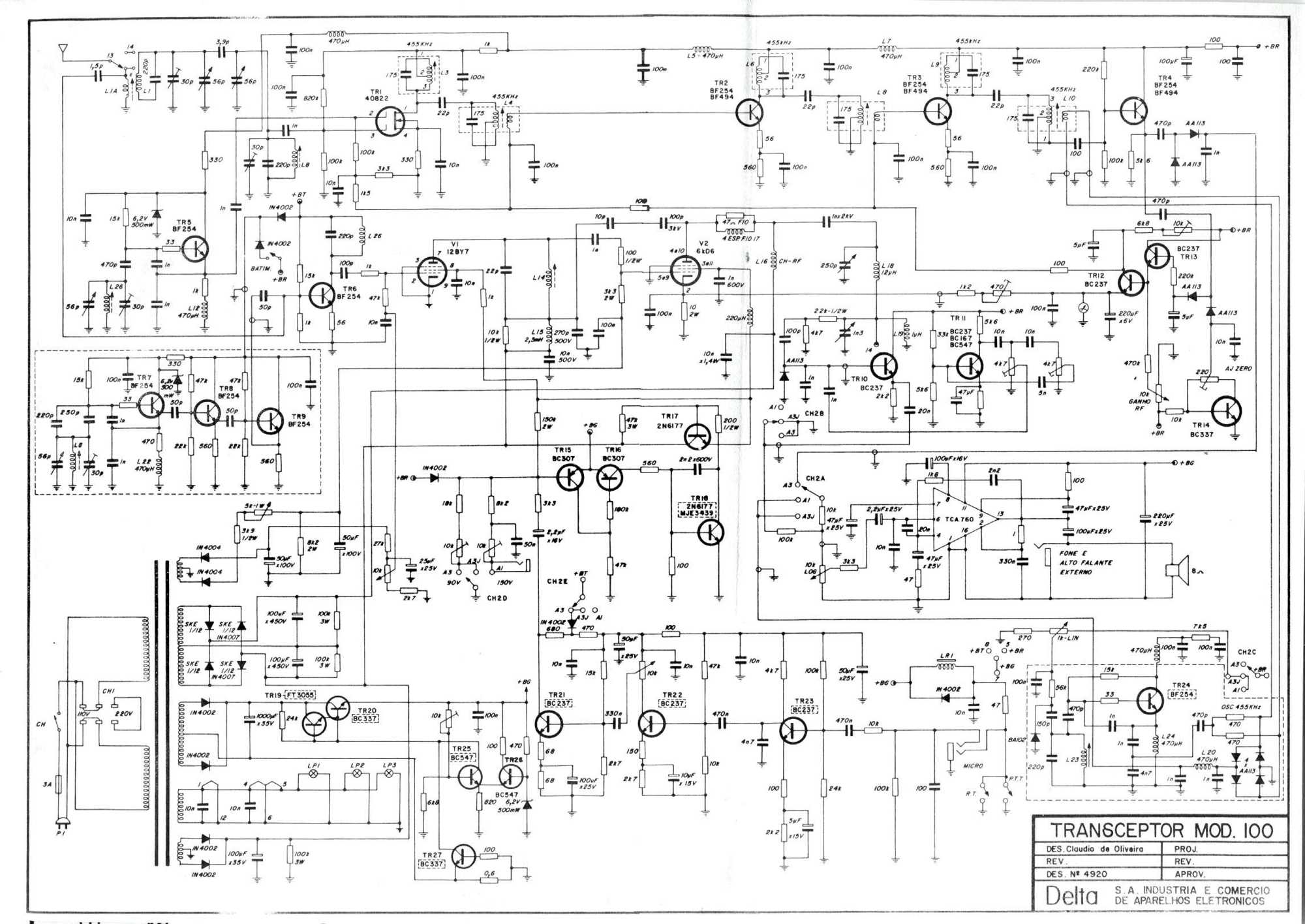

Delta 100 Circuit diagram
High-resolution scan of the Transceptor Model 100 made by Delta.
uploaded by RigReference
This document is related to the following rigs...
