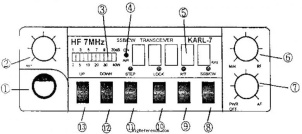

The Bando Technic 7 is a mobile 40 meter single band transceiver. Maximum RF output is 60 W in both CW and LSB. USB is not supported as it is hardly used on 40 meter. Tuning is done using UP/DOWN buttons with a 100Hz step size. Front controls include both and RF and AF gain dial and a 5-digit LED display.
General characteristics
- HAM bands
- 40m
- Frequency stability
- ?
- Tuning steps
- 0.1 / 1 kHz
- Memories
- ?
Receiver
- RX-range
- 40 m (7.000-7.100 MHz)
- Modulations
- CW LSB
- Sensitivity
- 0.25 µV (10 dB S/N)
- Selectivity
- SSB: 2.4 kHz (-6 dB), 4.4 kHz (-60 dB)
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- >50 dB
- Audio output
- 2 W into 8 ohm
Transmitter
- TX-range
- 40 m (7.000-7.100 MHz)
- Modulations
- CW LSB
- RF-output
- 60 W
Connections
- Antenna
- SO-239
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 12-14V DC
- Current drain RX
- 30 mA
- TX
- 7 A max
Physical
- Dimensions (w×h×d)
- 150 × 55 × 260 mm (5.91 × 2.17 × 10.24 in)
- Weight
- 2.00 kg (4.4 lbs)
- Form factor
- Mobile
- Manufactured
- Between 199x and 19xx in Korea
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 2446
- MPN
- BANDO-TECHNIC-000007
Manuals, diagrams and brochures
- Bando Technic 7 Block Diagram PDF - Unknown size, submitted by RigReference
