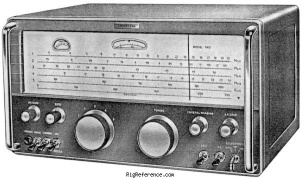

Eddystone 940

Desktop Shortwave receiver

Specs Manuals (1) Reviews (0) Prices (0) Compare

Find Eddystone 940 rigs and spare parts on eBay

Find the Eddystone 940 on Amazon
We receive a small fee if you buy through these links, which helps support this site. Thank you!

One of Eddystone's last tube receivers. Ranges: .48-1.03, 1.03-2.4, 2.4-5.4, 5.4-12.7 and 12.7-30 MHz. With flywheel tuning. Two tone gray finish.

Model 940/RM is a rack mount version. Model 940/1 has one fixed crystal position. Model 940/2 is configured for vehicular use. Model 940/3 produced for Her Majesty's Coast Guard. Eddystone's first solid state receiver was the Eddystone 960 which had 19 semiconductors and physically resembled the 940. The Eddystone 960 operated from 8 D cells or 12 V DC. The Eddystone 962 is similar to the 960, but with 8 fixed crystal positions.

General characteristics

HAM bands: ?
Frequency stability: ?
Tuning steps: ?
Memories: ?

Receiver

RX-range: 0.48-30 MHz
Modulations: AM CW SSB
Sensitivity: ?
Selectivity: ?
Filters: ?
Receiver system: Single conversion, 13 tubes
IF-frequencies: ?
Image rejection: ?
Audio output: ?

Connections

Antenna: -
Impedance: 50 Ω
Other: -

Electrical

Power requirements: Mains
Current drain RX: ?
TX: -

Physical

Dimensions (w×h×d): 425 × 222 × 381 mm (16.73 × 8.74 × 15.00 in)
Weight: 19.50 kg (43.0 lbs)
Form factor: Base Station
Manufactured: Between 1962 and 1969 in Great Britain

Other features

Usage: Amateur / Ham radio operators
Features + options: -
Accessories: -
RigReference ID: 2624
MPN: EDDYSTONE-000940

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!

Manuals, diagrams and brochures

: Eddystone-940 User'S Manual PDF - 1.16 MB, submitted by Pancho Cheja
