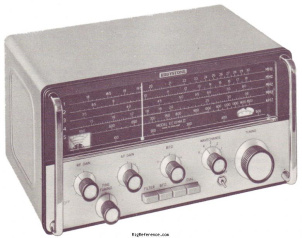

Eddystone EC10 MkII

General characteristics

HAM bands

?

Frequency stability

10 ppm per °C

Tuning steps

?

Memories

?

Receiver

RX-range

0.55-30 MHz in 5 bands

Modulations

AM   CW   SSB

Sensitivity

5 µV for 15 dB S/N above 1.5 MHz
15 µV for 15 dB S/N below 1.5 MHz

Selectivity

5 kHz (-6 dB)
25 kHz (-40 dB)

Filters

?

Receiver system

Single conversion

IF-frequencies

465 kHz

Image rejection

85 dB above 1.5 MHz 65 dB below 1.5 MHz

Audio output

1 W @ 10% THD

Connections

Antenna

SO-239

Impedance

75/400Ω

Other

-

Electrical

Power requirements

Internal 9 V battery pack (6×U2 or HP2) Optional 12V DC or mains modules available

Current drain RX

77 mA typical

TX

-

Physical

Dimensions (w×h×d)

317 × 162 × 203 mm (12.48 × 6.38 × 7.99 in)

Weight

6.30 kg (13.9 lbs)

Form factor

Base Station

Manufactured

Between 1970 and 197x in Great Britain

Other features

Usage

Amateur / Ham radio operators

Features + options

-

Accessories

-

RigReference ID

2630

MPN

EDDYSTONE-EC000010-MKII

Manuals, diagrams and brochures

Eddystone EC10 MkII Brochure PDF - Unknown size, submitted by RigReference



Upload relevant documents

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Eddystone EC10 MkII. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Eddystone EC10 MkII is around:

• USD 49.00
