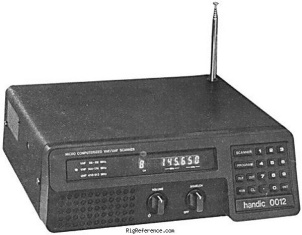

The Handic 0012 is a desktop VHF/UHF scanner/receiver. It covers the frequency range of 68-88 / 144-174 / 410-512 MHz with tuning steps of 5 / 12.5 kHz. The receiver system is a double conversion superheterodyne with IF frequencies of 1st: 10.7 MHz and 2nd: 455 kHz. It features an audio output of 2 W, 1 memory bank with 8 channels, and operates on 12-15 V DC or mains power. The Handic 0012 weighs 2.4 kg and has dimensions of 80 × 260 × 270 mm.
General characteristics
- HAM bands
- 2m 70cm
- Frequency stability
- ?
- Tuning steps
- 5 / 12.5 kHz
- Memories
- 8 channels in 1 bank(s) @ 10 channels/second
Receiver
- RX-range
- 68-88 / 144-174 / 410-512 MHz
- Modulations
- FM
- Sensitivity
- VHF: 1 µV,
UHF: 2 µV (20 dB S/N) - Selectivity
- 18 kHz (-6 dB) / 34 kHz (-60 dB)
- Filters
- ?
- Receiver system
- Double conversion superheterodyne
- IF-frequencies
- 1st: 10.7 MHz
2nd: 455 kHz - Image rejection
- ?
- Audio output
- 2 W
Connections
- Antenna
- Built-in telescopic + KOK1 (Motorola/DIN41585)
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 12-15 V DC or mains
- Current drain RX
- 10 W
- TX
- -
Physical
- Dimensions (w×h×d)
- 260 × 80 × 270 mm (10.24 × 3.15 × 10.63 in)
- Weight
- 2.40 kg (5.3 lbs)
- Form factor
- Base Station
- Manufactured
- Between 1980 and 198x in Japan
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 2878
- MPN
- HANDIC-000012
Manuals, diagrams and brochures
- Handic 0012 Owners Manual PDF - 2.32 MB, submitted by RigReference
