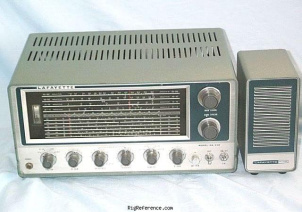

Lafayette HA-230 (KT-340)

General characteristics

HAM bands

?

Frequency stability

?

Tuning steps

?

Memories

?

Receiver

RX-range

0.55-30 MHz in 4 bands

Modulations

AM   CW   SSB

Sensitivity

?

Selectivity

±2.6 kHz

Filters

?

Receiver system

Single Conversion Superheterodyne, 9 Tubes

IF-frequencies

?

Image rejection

?

Audio output

?

Connections

Antenna

Clamps / screws

Impedance

?

Other

-

Electrical

Power requirements

Mains

Current drain RX

?

TX

-

Physical

Dimensions (w×h×d)

380 × 190 × 260 mm (14.96 × 7.48 × 10.24 in)

Weight

9.50 kg (21.0 lbs)

Form factor

Base Station

Manufactured

Between 1965 and 1966

Other features

Usage

Amateur / Ham radio operators

Features + options

¼" Head. Jack
S-Meter
BFO
Q-Multiplier
IF Gain
ANL
Bandspread
Antenna Trimmer
Mute
Dial Lamp
Standby
AVC ON/OFF

Accessories

-

RigReference ID

3538

MPN

LAFAYETTE-HA-000230-(KT-340)

Manuals, diagrams and brochures

Lafayette HA-230 Installation and Operating Manual PDF - 1.87 MB, submitted by Gerd
