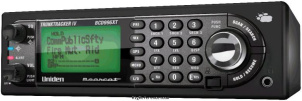

Uniden-Bearcat BCD996XT

General characteristics

HAM bands

?

Frequency stability

?

Tuning steps

5 / 10 / 12.5 / 20 / 25 / 50 / 100 kHz

Memories

2500 channels in 1 bank(s) @ 100 channels/second

Receiver

RX-range

25-512 / 758-824 / 850-869 / 894-960 / 1240-1300 MHz
Cellular blocked

Modulations

AM   FM   W-FM   APCO-25

Sensitivity

25-28 MHz AM: 0.3 µV
28-54 MHz NFM: 0.3 µV
54-72 MHz WFM: 0.5 µV
72-76 MHz FM: 0.2 µV
76-108 MHz WFM: 0.5 µV
108-137 MHz AM: 0.3 µV
137-174 MHz NFM: 0.2 µV
174-216 MHz WFM: 0.5 µV
216-225 MHz NFM: 0.3 µV
225-378 MHz AM: 0.3 µV
380-512 MHz NFM: 0.3 µV
758-960 MHz NFM: 0.3 µV
1240-1300 MHz NFM: 0.4 µV

Selectivity

?

Filters

?

Receiver system

Triple conversion superheterodyne

IF-frequencies

1st: 380/265 MHz
2nd: 10.8 MHz
3rd: 450 kHz

Image rejection

?

Audio output

3 watts nominal (@ 10% THD)

Connections

Antenna

BNC

Impedance

50Ω

Other

-

Electrical

Power requirements

11-16.6V DC

Current drain RX

?

TX

-

Physical

Dimensions (w×h×d)

183 × 56 × 150 mm (7.20 × 2.20 × 5.91 in)

Weight

1.55 kg (3.4 lbs)

Form factor

Mobile

Manufactured

Between 2009 and 201x

Other features

Usage

Amateur / Ham radio operators

Features + options

CTCSS/DCS
"Close Call" RF capture technology
Trunktracker IV, tracks Motorola I, II & IIi, EDACS and LTR
Band scope
Multi-color display backlight
NAC-decoding
Individual channel volume offset
RS-232C
GPS-enabled for location-related scanning
Turbo-Search (300 chn/sec)

Accessories

-

RigReference ID

4520

MPN

UNIDEN-BEARCAT-BCD000996XT

Manuals, diagrams and brochures

Uniden BCD996T Programming Control Codes PDF - Unknown size, submitted by RigReference



Upload relevant documents

Reviews & stories

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Uniden-Bearcat BCD996XT. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Uniden-Bearcat BCD996XT is around:

• USD 77.00

Price History Chart

These estimates are based on the following prices:
