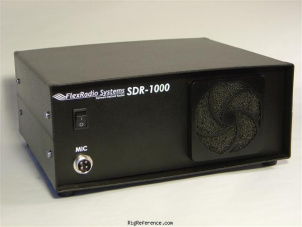

The SDR-1000 was introduced in 2003 and at the time was the first open source Software Defined Radio (SDR) transceiver in the world. The little black box's primary function is to convert RF to a 11 KHz Quadrature (I/Q) AF signal for receive functions and to convert a 11 KHz quadrature AF signal to RF and to amply that signal to 100 watts PEP. Everything else is done in software. The SDR-1000 is controlled via a PC Parallel Port (DB-25 connector) or optional USB-parallel adapter.
Every SDR-1000 comes with PowerSDR software that performs all DSP and control functions for the radio. The software is provided open source under the GNU General Public License (GPL). This means that customers have the ability to improve performance and add functionality to the radio with redistribution rights defined under GPL.
PowerSDR features:
· Real-time Panadapter and Waterfall Spectrum Displays of
the passband
· User defined “On the Fly” drag and set Filter Setting
· Brick wall filters down to 25 Hz with no ringing
· Zero beat click tuning of signals in the Panadapter
· Advanced digital AGC performed after the filter
· DSP Noise Reduction, Noise Blanking (2) and Notch Filter
· Digital EQ, Compression, Compander and variable transmit
bandwidth filters for the ultimate SSB and AM experience
· Integrated CAT for use with any logging or contest software
· Built-in Iambic keyer and automatic zero beat for CW
· Full Split operation with MultiRX makes working DX a breeze
· All mode (SSB, CW, AM, FM, SAM & DRM) with multiple
bandstack registers and memories
· Virtually unlimited memory channels
General characteristics
- HAM bands
- 160m 80m 60m 40m 30m (WARC) 20m 17m (WARC) 15m 12m (WARC) 11m (CB) 6m 2m
- Frequency stability
- ?
- Tuning steps
- 0.001 kHz
- Memories
- 100000 channels in 1 bank(s)
Receiver
- RX-range
- 0.012-60 MHz
- Modulations
- AM N-FM CW USB LSB DSB
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- Software controlled
- Receiver system
- SDR
- IF-frequencies
- SDR
- Image rejection
- ?
- Audio output
- Line in / Line out / Mic in/out
Transmitter
- TX-range
- 160-6m (2m optional)
- Modulations
- AM N-FM CW USB LSB DSB
- RF-output
- HF: 100W (CW: 40W), 6m: 500mW
Connections
- Antenna
- BNC
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- ?
- TX
- 25A max
Physical
- Dimensions (w×h×d)
- 241 × 254 × 114 mm (9.49 × 10.00 × 4.49 in)
- Weight
- ?
- Form factor
- Headless
- Manufactured
- Between 2003 and 2007 in USA
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- SDR (Software Defined Radio)
- Accessories
- -
- RigReference ID
- 4568
- MPN
- FLEXRADIO-SDR-001000
