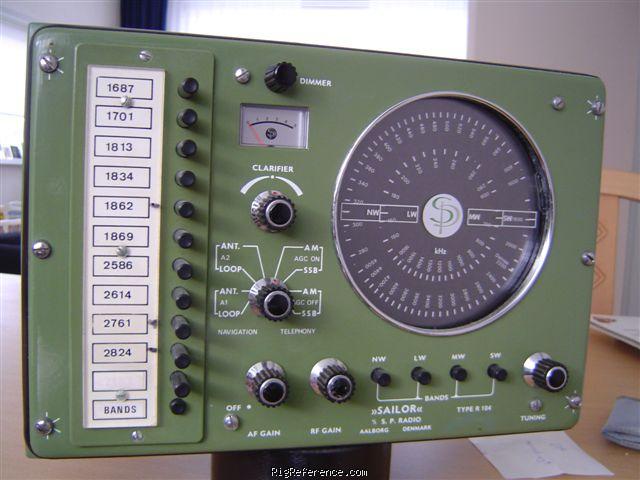

Maritime telephony and direction finding receiver, 150-350 / 300-535 / 700-1650 / 1600-4200 kHz and 11 crystal controlled frequencies including the 2182 kHz emergency channel. Modes AM, SSB, CW. Green steel cabinet for wall mounting. Also sold as the DEBEG 7281 in some countries.

General characteristics

HAM bands
160m  80m
Frequency stability
?
Tuning steps
Continuous
Memories
11 channels in 1 bank(s)

Receiver

RX-range
150-4200 kHz in 4 bands
Modulations
AM   CW   SSB
Sensitivity
?
Selectivity
?
Filters
?
Receiver system
Single conversion superheterodyne
IF-frequencies
600 kHz
Image rejection
?
Audio output
5 W

Connections

Antenna
-
Impedance
50Ω
Other
-

Electrical

Power requirements
12/24 V DC, 110/220 V AC
Current drain RX
?
TX
-

Physical

Dimensions (w×h×d)
342 × 232 × 220 mm (13.46 × 9.13 × 8.66 in)
Weight
10.00 kg (22.1 lbs)
Form factor
Base Station
Manufactured
Between 1972 and 197x in Denmark

Other features

Usage
Marine / Navy
Features + options
11 crystal controlled frequencies
Accessories
-
RigReference ID
5309
MPN
SAILOR-R000104

Manuals, diagrams and brochures

No documents available for this particular model.
