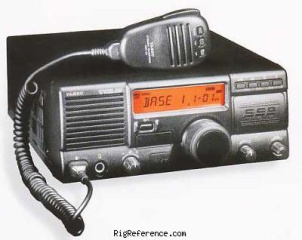

The Yaesu System-600 is similar to the Yaesu FT-600 but has continuous TX-range from 1.8 to 30 MHz (not just ham bands). Build to MIL-STD 810 D/E standard.

General characteristics

HAM bands
160m  80m  60m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)  11m (CB)  10m
Frequency stability
?
Tuning steps
?
Memories
100 channels in 1 bank(s)

Receiver

RX-range
50 kHz - 30 MHz
Modulations
AM   CW   SSB
Sensitivity
?
Selectivity
?
Filters
?
Receiver system
?
IF-frequencies
?
Image rejection
?
Audio output
?

Transmitter

TX-range
1.8 - 30 MHz
Modulations
AM   CW   SSB
RF-output
100 W

Connections

Antenna
SO-239
Impedance
50Ω
Other
-

Electrical

Power requirements
13.8V DC
Current drain RX
?
TX
Max 20 A

Physical

Dimensions (w×h×d)
?
Weight
?
Form factor
Mobile
Manufactured
Between 199x and 201x

Other features

Usage
Amateur / Ham radio operators
Features + options
-
Accessories
-
RigReference ID
5475
MPN
YAESU-SYSTEM-000600

Manuals, diagrams and brochures

Yaesu System-600 Dealers Manual PDF - 5.91 MB, submitted by RigReference
Yaesu System-600 Service Manual PDF - 27.17 MB, submitted by RigReference
