Atlas RX-110

Desktop Shortwave receiver

Specs Manuals (1) Reviews (0) Prices (0) Compare

Find Atlas RX-110 rigs and spare parts on eBay

Find the Atlas RX-110 on Amazon
We receive a small fee if you buy through these links, which helps support this site. Thank you!

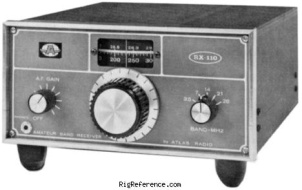

The Atlas RX-110 is a solid state, single conversion amateur band receiver. It covers 3.5-4, 7-7.5, 14-14.5, 21-21.5 and 28-29 MHz in CW and SSB modes. The RX-110 features an analog display and has a mini 3.5mm headphone jack on the front panel. There is a speaker built into the bottom panel.

With the addition, of the TX-110 transmit module, this radio becomes an amateur transceiver. DC power consumption with the TX-110-L is 2 amps, or 16 amps with the TX-110-H.

General characteristics

HAM bands: 80m 40m 20m 15m 10m
Frequency stability: ?
Tuning steps: Continuous
Memories: None

Receiver

RX-range: 80-10 m
Modulations: CW SSB
Sensitivity: ?
Selectivity: ?
Filters: ?
Receiver system: Single conversion
IF-frequencies: ?
Image rejection: ?
Audio output: ?

Connections

Antenna: RCA (Tulip)
Impedance: 50Ω
Other: -

Electrical

Power requirements: Mains or 13.8V DC
Current drain RX: 200 mA
TX: -

Physical

Dimensions (w×h×d): 216 × 95 × 248 mm (8.50 × 3.74 × 9.76 in)
Weight: 3.20 kg (7.1 lbs)
Form factor: Base Station
Manufactured: Between 19xx and 19xx in USA

Other features

Usage: Amateur / Ham radio operators
Features + options: -
Accessories: -
RigReference ID: 5476
MPN: ATLAS-RX-000110

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!

Manuals, diagrams and brochures

: Atlas RX-110 Installation and Operation Manual PDF - 41.32 MB, submitted by Gerd
