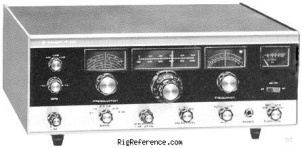

Galaxy R-530

Desktop Shortwave receiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

Find Galaxy R-530 rigs and spare parts on eBay

Find the Galaxy R-530 on Amazon
We receive a small fee if you buy through these links, which helps support this site. Thank you!

A very advanced and accurate receiver for its time. Dial accuracy was ±1 kHz. Very scarce. Caution: This company is no longer in business. The model Galaxy R-1530 was an improved version (1972-73).

General characteristics

HAM bands: ?
Frequency stability: less than 100 Hz drift
Tuning steps: 1 kHz
Memories: ?

Receiver

RX-range: 0.5-30 MHz
Modulations: AM USB LSB
Sensitivity: ?
Selectivity: ?
Filters: ?
Receiver system: Double conversion superheterodyne
IF-frequencies: ?
Image rejection: ?
Audio output: ?

Connections

Antenna: -
Impedance: ?
Other: -

Electrical

Power requirements: Mains (115/230 V AC)
Current drain RX: ?
TX: -

Physical

Dimensions (w×h×d): 432 × 152 × 432 mm (17.01 × 5.98 × 17.01 in)
Weight: 11.40 kg (25.2 lbs)
Form factor: Base Station
Manufactured: Between 1968 and 1972 in USA

Other features

Usage: Amateur / Ham radio operators
Features + options: Solid state
Accessories: -
RigReference ID: 5576
MPN: GALAXY-R-000530

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!
