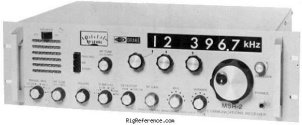

Drake MSR-2

General characteristics

HAM bands

?

Frequency stability

Less than 200 Hz per 8 hour at 0-40 °C and ±10% variation in line voltage after 0.5 hour warmup

Tuning steps

10 / 1 MHz / 100 kHz

Memories

?

Receiver

RX-range

0.1-30 MHz

Modulations

AM   CW   USB   LSB   ISB   RTTY

Sensitivity

0.01-0.5 MHz
< 4 µV for 10 dB SINAD @ 2.4 kHz SSB
< 25 µV for 10 dB SINAD @ 6 kHz AM
0.5-30 MHz
< 0.3 µV for 10 dB SINAD @ 2.4 kHz SSB
< 2.0 µV for 10 dB SINAD @ 6 kHz AM

Selectivity

6 kHz @ -6 dB, 11.5 kHz @ -60 dB
2.4 kHz @ -6 dB, 4.3 kHz @ -60 dB
1.2 kHz @ -6 dB, 2.4 kHz @ -60 dB
0.3 kHz @ -6 dB, 0.6 kHz @ -60 dB

Filters

6 / 2.4 / 1.2 / 0.3 kHz Optional filters available

Receiver system

Double / triple conversion

IF-frequencies

?

Image rejection

≥ 60 dB below 10 MHz ≥ 50 dB above 10 MHz

Audio output

2 W @ 5% THD

Connections

Antenna

SO-239

Impedance

1000 / 50Ω

Other

-

Electrical

Power requirements

120 / 240 V AC ± 10% single fase 50~420 Hz

Current drain RX

35 W

TX

-

Physical

Dimensions (w×h×d)

340 × 140 × 380 mm (13.39 × 5.51 × 14.96 in)

Weight

7.70 kg (17.0 lbs)

Form factor

Base Station

Manufactured

Between 1971 and 19xx

Other features

Usage

Marine / Navy

Features + options

Nixie tube display
BFO
Noise blanker
AVC (Automatic Volume Control

Accessories

-

RigReference ID

5582

MPN

DRAKE-MSR-000002
