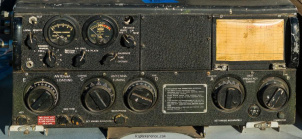

The Collins T-47 / ART-13 is a 100 watt carrier output, AM-CW-MCW transmitter that was generally used in USN and USAAF/USAF aircraft. Frequency range is from 2 to 18 MHz, but a special plug-in Low Frequency Oscillator (LFO) allowed operation between 200 and 600 or 1500 kHz, in CW only.
The T-47/ART-13 featured an advanced Autotune system that would automatically tune up to 11 preset channels (10 channels plus one LF channel) selectable by a front panel switch. The Autotune system would tune the transmitter frequency and output network to mechanical presets that then would match a properly selected antenna. The Autotune cycle took about 25 seconds to complete.
Power requirements were supplied by a dynamotor that ran on the aircraft +28vdc battery/charger system. The aircraft battery buss supplied the +28vdc@10Amps necessary for the transmitter's tube filaments and relay operation while the dynamotor provided a dual output of +400vdc and +750vdc.
General characteristics
- HAM bands
- ?
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- 11 channels in 1 bank(s)
Transmitter
- TX-range
- 2-18 MHz
200-600 / 1500 kHz optional - Modulations
- AM CW
- RF-output
- 100 W carrier
Connections
- Antenna
- Clamps / screws
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- Dynamotor from 28 V DC
- Current drain RX
- -
- TX
- 10 A
Physical
- Dimensions (w×h×d)
- ?
- Weight
- ?
- Form factor
- Base Station
- Manufactured
- Between 1943 and 194x in USA
Other features
- Usage
- Military communication
- Features + options
- -
- Accessories
- -
- RigReference ID
- 5985
- MPN
- COLLINS-T-000047-/-ART-13
