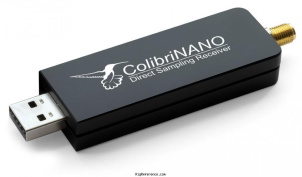

Expert Electronics ColibriNano

General characteristics

HAM bands

160m  80m  60m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)  11m (CB)  6m  10m

Frequency stability

+/- 0.5 p.p.m.

Tuning steps

Software defined

Memories

10000 channels in 10000 bank(s)

Receiver

RX-range

0.01-55 MHz (500 MHz with oversampling)

Modulations

AM   AM-sync   FM   N-FM   W-FM   CW   USB   LSB   Multiple (Software defined)

Sensitivity

0.35 µV

Selectivity

?

Filters

?

Receiver system

Direct down conversion, software defined

IF-frequencies

Software defined

Image rejection

?

Audio output

None

Connections

Antenna

SMA

Impedance

50Ω

Other

-

Electrical

Power requirements

5 V DC (USB 2.0)

Current drain RX

410 mA max

TX

-

Physical

Dimensions (w×h×d)

25 × 17 × 90 mm (0.98 × 0.67 × 3.54 in)

Weight

43 gr (1.5 oz)

Form factor

Headless

Manufactured

Between 2017 and 20xx in Germany

Other features

Usage

Amateur / Ham radio operators

Features + options

Spectrum scope bandwidth up to 62.5 MHz
14-bit ADC (Texas Instruments ADS4145)
Aluminium case
1.5 MHz sampling rate
Client-Server application possible (remote control)

Accessories

-

RigReference ID

6143

MPN

EXPERT-ELECTRONICS-COLIBRINANO
