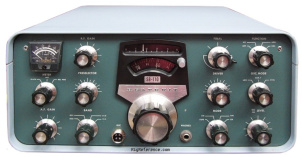

Heathkit SB-110A

General characteristics

HAM bands

6m

Frequency stability

≥ 100 Hz per hour, after 20 mins. warm-up. ≥ 100 Hz / ±10% supply voltage

Tuning steps

?

Memories

None

Receiver

RX-range

49.5-54 MHz in 500 kHz segments
50.0-52.0 MHz with crystals

Modulations

CW   USB   LSB

Sensitivity

0.1 µV (10 dB S/N)

Selectivity

2.1 kHz @ -6 dB
5 kHz @ -60 dB

Filters

?

Receiver system

?

IF-frequencies

1st: 8395 kHz
2nd 3395 kHz

Image rejection

≥ 50 dB

Audio output

1 W

Transmitter

TX-range

49.5-54 MHz in 500 kHz segments
50.0-52.0 MHz with crystals

Modulations

CW   USB   LSB

RF-output

SSB: 100 W PEP, CW: 90 W

Connections

Antenna

SO-239

Impedance

50Ω

Other

-

Electrical

Power requirements

Mains

Current drain RX

?

TX

?

Physical

Dimensions (w×h×d)

380 × 168 × 339 mm (14.96 × 6.61 × 13.35 in)

Weight

7.70 kg (17.0 lbs)

Form factor

Base Station

Manufactured

Between 1965 and 1971 in USA

Other features

Usage

Amateur / Ham radio operators

Features + options

VOX (Voice Operated Transmit)
PTT (Push To Talk)
Built-in crystal calibrator (100 kc intervals)
ALC (Auto. Level Control)
S-meter

Accessories

-

RigReference ID

6185

MPN

HEATHKIT-SB-000110A
