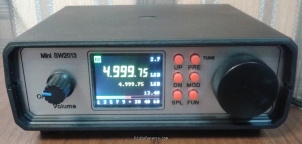

Compact HF transceiver with split operation functionality. Color display, built-in keyer and SWR-meter. No memories. Sold as kit.
General characteristics
- HAM bands
- 160m 80m 60m 40m 30m (WARC) 20m 17m (WARC) 15m 12m (WARC) 10m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- None
Receiver
- RX-range
- 0.03-32 MHz
- Modulations
- CW USB LSB
- Sensitivity
- Pre-amp off: 0.5 µV (10 dB S/N)
Pre-amp on: 0.25 µV (10 dB S/N) - Selectivity
- SSB/CW: 2.7 kHz (-6 dB)
CW narrow: 500 Hz (-6 dB) - Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 160-10 m + WARC
- Modulations
- CW USB LSB
- RF-output
- 1...15 W
Connections
- Antenna
- SO-239
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 13.8 V DC
- Current drain RX
- 13.5-350 mA
- TX
- 0.82-2.9 A
Physical
- Dimensions (w×h×d)
- 149 × 50 × 130 mm (5.87 × 1.97 × 5.12 in)
- Weight
- 540 gr (1.2 lbs)
- Form factor
- Mobile
- Manufactured
- Between 2016 and 20xx in Ukraine
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 6332
- MPN
- MINI-SW002016
Manuals, diagrams and brochures
-
No documents available for this particular model.
