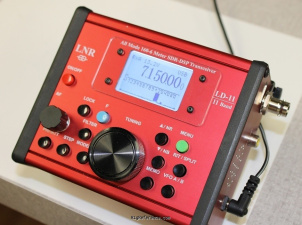

The LNR Precision LD-11 is a Digital Direct Conversion, SDR type tranceiver with build-in DSP CPU (SM32a).
This enables direct sampling with extremely low phase and floor noise.

The DSP is unique and features two independent channels. It also employs a unique differential algorithm within the software which is applied for IQ processing of the channels with phase suppression of the unwanted side-band channel.

General characteristics

HAM bands
160m  80m  60m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)  11m (CB)  6m  10m
Frequency stability
± 3 p.p.m. (Si570 defined) typical over 0-50 °C
Tuning steps
?
Memories
100 channels in 1 bank(s)

Receiver

RX-range
1.8–29.990 / 50-54 MHz
Modulations
AM   FM   CW   USB   LSB   RTTY   PSK31/63   SSTV
Sensitivity
0.15 µV w/o preamp
Selectivity
CW: 50-1000 Hz
SSB: 250-3600 Hz
Filters
300 / 500 / 1.3 / 1.6 / 1.9 / 2.2 / 2.5 kHz (DSP)
Receiver system
Digital Direct Conversion / SDR
IF-frequencies
?
Image rejection
?
Audio output
8 ohms, .5 watts

Transmitter

TX-range
160-10 / 6 m
Modulations
AM   FM   CW   USB   LSB   RTTY   PSK31/63   SSTV
RF-output
5-8 W

Connections

Antenna
BNC
Impedance
50Ω
Other
-

Electrical

Power requirements
10.5-15.0 V DC
Current drain RX
350 mA
TX
2 A

Physical

Dimensions (w×h×d)
?
Weight
540 gr (1.2 lbs)
Form factor
Portable
Manufactured
Between 2018 and 20xx in USA

Other features

Usage
Amateur / Ham radio operators
Features + options
128×64 pixels LCD
Accessories
-
RigReference ID
6376
MPN
LNR-PRECISION-LD-000011

Manuals, diagrams and brochures

LNR LD-11 User Manual PDF - 978.0 kB, submitted by RigReference

Upload relevant documents

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used LNR Precision LD-11. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the LNR Precision LD-11 is around:

  • USD 615.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
2018 USD 750.00 New / Mint RigReference
