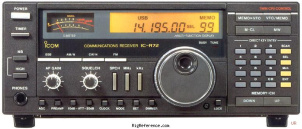

ICOM IC-R72DC Desktop Shortwave receiver

 (0.0/5)  Add a review   View all reviews (0)   Add to my shack



Login or Register to upload images

Frequency range

RX-range
0.03-30 MHz (Germany: 0.15-26.1 MHz)
TX-range
-
HAM bands
-
Stability
± 30 Hz after 1 hour warm-up
Tuning steps
10 Hz / 1 kHz / 1 MHz
Filters
250 / 500 Hz CW filters optional

Receiver

Modulations
AM   FM   CW   SSB
Sensitivity
AM (10 dB S/N)
0.1-1.8 MHz: 12.6 uV
1.8-30 MHz: 2 uV (Preamp on)
FM (12 dB SINAD)
28-30 MHz: 0.5 µV (Preamp on)
SSB/CW (10 dB S/N)
0.1-1.8 MHz: 2 µV (Preamp on)
1.8-30 MHz: 0.16 µV (Preamp on)
Selectivity
AM
>6 kHz (-6 dB), <20 kHz (-60 dB)
FM
>15 kHz (-6 dB), <30 kHz (-60 dB)
SSB/CW/AM Narrow
>2.3 kHz (-6 dB), <4 kHz (-60 dB)
Receiver system
Double conversion superheterodyne
IF-frequencies
-
Image rejection
≥ 70 dB
Audio output
2 W at 10% distortion / 8 ohms

Transmitter

Modulations
-
RF-Output
-

Connections

Antenna
SO-239
Impedance
50 / 500Ω

Electrical

Power requirements
13.8 V DC or mains
Current drain RX
1.2 A max
TX
-

Physical

Dimensions (w×h×d)
241 × 94 × 229 mm (9.49 × 3.70 × 9.02 in) excl. projections
Weight
5.50 kg (12.1 lbs)
Form factor
Base Station
Manufactured
Between 1992 and 1998 in Japan
MPN
ICOM-IC-R000072DC

Other features

Memories
99 channels in 1 bank(s)
Usage
Amateur / Ham radio operators
Features + options
Clock & timer
Pre-amp (10 dB)
Attenuator (20 dB)
Accessories
UI-8 FM receive unit (optional)
CR-64 High-stability crystal unit (optional)
UT-36 Voice synthesizer unit (optional)
UR-1 Receiver protection unit (optional)

Manuals, diagrams and brochures

Icom IC-R72 Instruction Manual submitted by RigReference

Upload relevant documents

Show other documents.

Reviews & stories

Do you know this rig? Tell us something about it!

What is it worth?

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the current value of the ICOM IC-R72DC. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's value of the ICOM IC-R72DC might be around:

  • USD 151.00
Price Condition Year User
USD 305.00 Used / Good 2010 eBay
