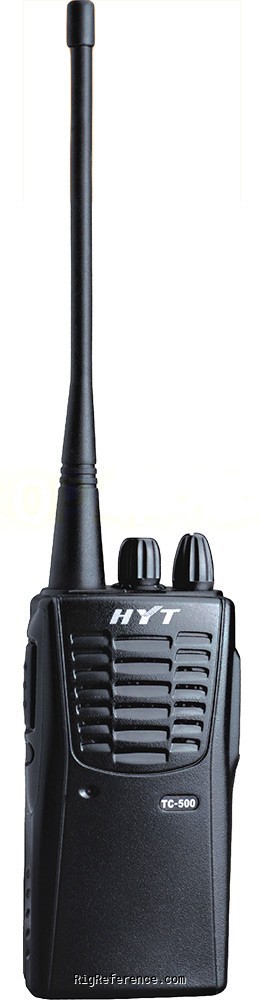

The Hytera TC-500 is a handheld VHF/UHF transceiver. It covers 136-174 / 350-390 / 400-420 / 450-470 MHz for both receive and transmit with a frequency stability of ± 5 p.p.m. and tuning steps of 25/12.5 kHz. The RF output is 3.3 W and the audio output is 400 mW @ ≤5%. It has 1 memory bank with 16 channels. Dimensions are 54 × 109 × 34 mm. The TC-500 is Chargeable and Programmable through Mini USB Interface.
General characteristics
- HAM bands
- 2m 70cm
- Frequency stability
- ± 5 p.p.m.
- Tuning steps
- 25 / 12.5 kHz
- Memories
- 16 channels in 1 bank(s)
Receiver
- RX-range
- 136-174 / 350-390 / 400-420 / 450-470 MHz
- Modulations
- FM
- Sensitivity
- 0.25 μV
- Selectivity
- 55 dB
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- 400 mW @ ≤5%
Transmitter
- TX-range
- 136-174 / 350-390 / 400-420 / 450-470 MHz
- Modulations
- FM
- RF-output
- 3.3 W
Connections
- Antenna
- -
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 6V, 1100mAh(Ni-MH)
- Current drain RX
- ?
- TX
- ?
Physical
- Dimensions (w×h×d)
- 109 × 54 × 34 mm (4.29 × 2.13 × 1.34 in)
- Weight
- 270 gr (9.5 oz)
- Form factor
- Handheld
- Manufactured
- Between 201x and 201x in China
Other features
- Usage
- Commercial / Land mobile communication
- Features + options
- Chargeable and Programmable through Mini USB Interface
- Accessories
- -
- RigReference ID
- 5639
- MPN
- HYTERA-TC-000500
