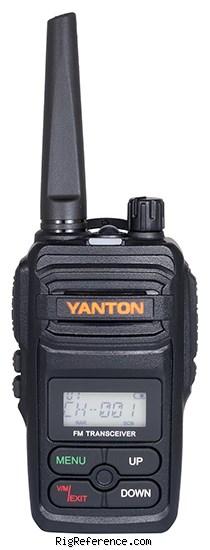

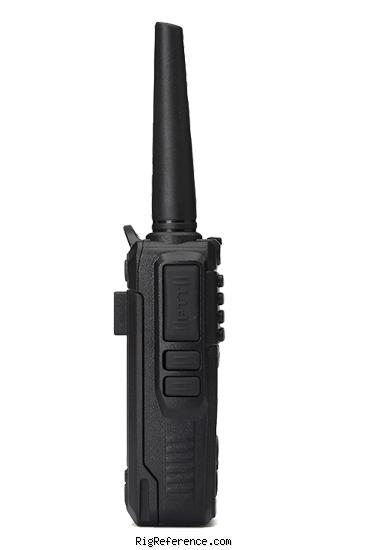

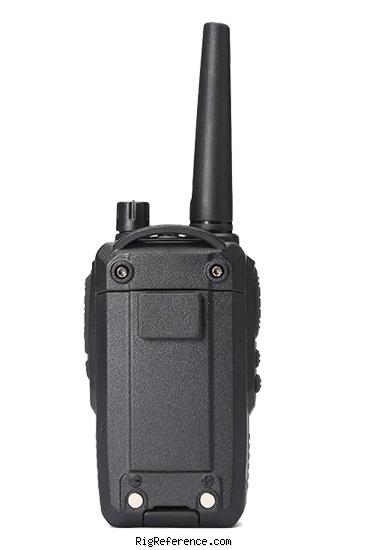

Yanton T-330 3W Handheld Dual-band Transceiver

 (0.0/5)  Add a story   View all stories (0)   Add to my shack



Login or Register to upload images

Frequency range

RX-range
87.5-108 / 136-174 / 400-480 MHz
TX-range
136-174 / 400-480 MHz
HAM bands
2m  70cm
Stability
± 2.5 p.p.m.
Tuning steps
-
Filters
-

Receiver

Modulations
FM
Sensitivity
< 0.20 µV (12 dB SINAD)
Selectivity
-
Receiver system
-
IF-frequencies
-
Image rejection
-
Audio output
500 mW

Transmitter

Modulations
FM
RF-Output
3 W

Connections

Antenna
SMA
Impedance
50Ω

Electrical

Power requirements
3.7 V DC, 1200 mAh Li-ion Battery
Current drain RX
100 mA max
TX
1 A max

Physical

Dimensions (w×h×d)
122 × 60 × 38 mm (4.80 × 2.36 × 1.50 in)
Weight
232 gr (8.2 oz)
Form factor
Handheld
Manufactured
Between 201x and 201x in China
MPN

Other features

Memories
199 channels in 1 bank(s)
Usage
Amateur / Ham radio operators
Features + options
PC Software Programmable
Manual Programming
Wire Copy
VOX Function
CTCSS/DCS
Monitor, Reverse Frequency
Accessories
-
