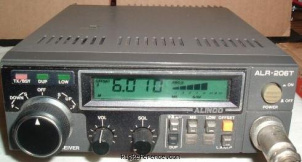

The Alinco ALR-206T is a VHF transceiver. It covers 140-150 MHz for both receive and transmit. The radio features a tuning step of 5 kHz, an RF output of 25 W (High) or 5 W (Low), 1 memory bank with 10 channels, and CTCSS & DTMF capabilities. It requires 13.8V DC power.
General characteristics
- HAM bands
- ?
- Frequency stability
- ?
- Tuning steps
- 5 kHz
- Memories
- 10 channels in 1 bank(s)
Receiver
- RX-range
- 140-150 MHz
- Modulations
- FM
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 140-150 MHz
- Modulations
- FM
- RF-output
- High: 25 W, Low: 5 W
Connections
- Antenna
- SO-239
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- ?
- TX
- ?
Physical
- Dimensions (w×h×d)
- ?
- Weight
- ?
- Form factor
- Unknown
- Manufactured
- Between 19xx and 19xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- CTCSS & DTMF
- Accessories
- -
- RigReference ID
- 2228
- MPN
- ALINCO-ALR-000206T
Manuals, diagrams and brochures
-
No documents available for this particular model.
