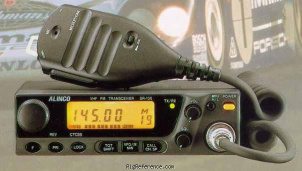

The Alinco DR-130 is a Mobile VHF Transceiver. It covers 144-146 MHz for both receive and transmit. The RF output is selectable between High: 50 W and Low: 5 W. It features CTCSS and has 1 memory bank with 20 channels. Power requirements are 13.8V DC. The current drain in receive mode is Max 800 mA, and in transmit mode it is Max 10.5 A. Dimensions are 40 × 140 × 155 mm and the weight is 860 gr.
General characteristics
- HAM bands
- 2m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- 20 channels in 1 bank(s)
Receiver
- RX-range
- 144-146 MHz
- Modulations
- FM
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 144-146 MHz
- Modulations
- FM
- RF-output
- High: 50 W, Low: 5 W
Connections
- Antenna
- -
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- Max 800 mA
- TX
- Max 10.5 A
Physical
- Dimensions (w×h×d)
- 140 × 40 × 155 mm (5.51 × 1.57 × 6.10 in)
- Weight
- 860 gr (1.9 lbs)
- Form factor
- Mobile
- Manufactured
- Between 19xx and 19xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- CTCSS
- Accessories
- -
- RigReference ID
- 2311
- MPN
- ALINCO-DR-000130
Manuals, diagrams and brochures
- Alinco DR-130/330/430 Instruction manual PDF - Unknown size, submitted by RigReference
- Upload relevant documents
Reviews & stories
| Rating | Title | Submitted |
|---|---|---|
| Powerful Transceiver For Less Budget | 11 years ago by binonie |
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Alinco DR-130. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic data, today's second-hand price of the Alinco DR-130 is around:
- USD 47.00
These estimates are based on the following prices:
