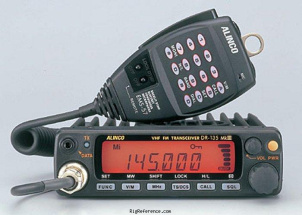

The Alinco DR-135E MKIII is a Mobile VHF Transceiver. It covers 118-174 MHz (after modification) for reception and 144-146 MHz for transmission. The transceiver features a double-conversion superheterodyne receiver system with IF frequencies of 1st: 21.7 MHz and 2nd: 450 KHz. It has selectable tuning steps of 5 / 8.33 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 kHz. The DR-135E MKIII offers a maximum RF output of 50W, 20W, or 5W and features CTCSS, DCS, GPS input for APRS, and 1200/9600 bd packet (EJ-41U) option. It has 1 memory bank with 100 channels. Dimensions are 40 × 142 × 174 mm. The transceiver weighs 1 kg and requires 13.8V DC +/- 15%. Current drain is 400 mA (squelched) in receive mode and a maximum of 11 A in transmit mode.
General characteristics
- HAM bands
- 2m
- Frequency stability
- ?
- Tuning steps
- 5 / 8.33 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 kHz
- Memories
- 100 channels in 1 bank(s)
Receiver
- RX-range
- 118-174 MHz (after modification)
- Modulations
- AM FM N-FM DV
- Sensitivity
- < -16.0 dBu (12 dB SINAD)
- Selectivity
- FM: 12 kHz or more (-6 dB), 28 kHz or less (-60 dB)
N-FM: 6 kHz or more (-6 dB), 16 kHz or less (-60 dB) - Filters
- ?
- Receiver system
- Double-conversion superheterodyne
- IF-frequencies
- 1st: 21.7 MHz
2nd: 450 KHz - Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 144-146 MHz
- Modulations
- FM N-FM DV
- RF-output
- High: 50 W, Medium: 20 W, Low: 5 W
Connections
- Antenna
- BNC
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC +/- 15%
- Current drain RX
- 400 mA (squelched)
- TX
- Max 11 A
Physical
- Dimensions (w×h×d)
- 142 × 40 × 174 mm (5.59 × 1.57 × 6.85 in)
- Weight
- 1,000 gr (2.2 lbs)
- Form factor
- Mobile
- Manufactured
- Between 200x and 200x
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- CTCSS, DCS. GPS input for APRS. 1200/9600 bd packet (EJ-41U) option. RoHS compliant
- Accessories
- -
- RigReference ID
- 2314
- MPN
- ALINCO-DR-000135E-MKIII
Manuals, diagrams and brochures
- Alinco DR-135/435MK3 FXE Instruction manual PDF - Unknown size, submitted by RigReference
- Alinco DR-135/435MK3 Service manual PDF - Unknown size, submitted by RigReference
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Alinco DR-135E MKIII. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic data, today's second-hand price of the Alinco DR-135E MKIII is around:
- EUR 47.00 ~ EUR 22.00
These estimates are based on the following prices:
