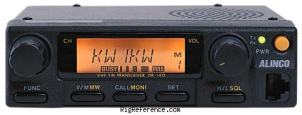

The Alinco DR-140 is a Mobile VHF Transceiver. It covers 118-173 MHz for receive and 144-146 MHz for transmit. The RF output power is selectable between High: 50 W and Low: 5 W. It features 1 memory bank with 50 channels. Power requirements are 13.8V DC. Dimensions are 41 × 141 × 154 mm. The current drain in receive mode is Max 800 mA, and in transmit mode it's Max 10.5 A.
General characteristics
- HAM bands
- 2m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- 50 channels in 1 bank(s)
Receiver
- RX-range
- 118-173 MHz
- Modulations
- AM FM
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 144-146 MHz
- Modulations
- FM
- RF-output
- High: 50 W, Low: 5 W
Connections
- Antenna
- SO-239
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- Max 800 mA
- TX
- Max 10.5 A
Physical
- Dimensions (w×h×d)
- 141 × 41 × 154 mm (5.55 × 1.61 × 6.06 in)
- Weight
- 860 gr (1.9 lbs)
- Form factor
- Mobile
- Manufactured
- Between 19xx and 19xx in Japan
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 2317
- MPN
- ALINCO-DR-000140
Manuals, diagrams and brochures
- Alinco DR-140T/E/TE1/TE2 Service manual PDF - Unknown size, submitted by RigReference
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Alinco DR-140. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic data, today's second-hand price of the Alinco DR-140 is around:
- USD 46.00 ~ USD 47.00
These estimates are based on the following prices:
