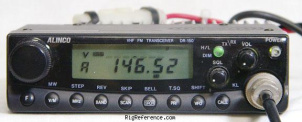

The Alinco DR-150 is a mobile VHF transceiver. Frequency range for RX is 118-173 MHz and TX is 144-146 MHz (Europe) or 144-148 MHz (USA). RF output power is selectable as High: 50 W, Medium: 25 W, Low: 10 W. It features 1 memory bank with 100 channels and requires 13.8V DC power. Current drain is Max 600 mA in RX and Max 10 A in TX. Dimensions are 40 × 140 × 129 mm. The DR-150 is 9K6 packet ready.
General characteristics
- HAM bands
- 2m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- 100 channels in 1 bank(s)
Receiver
- RX-range
- 118-173 MHz
- Modulations
- AM FM
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 144-146 MHz (Europe)
144-148 MHz (USA) - Modulations
- FM
- RF-output
- High: 50 W, Medium: 25 W, Low: 10 W
Connections
- Antenna
- SO-239
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- Max 600 mA
- TX
- Max 10 A
Physical
- Dimensions (w×h×d)
- 140 × 40 × 129 mm (5.51 × 1.57 × 5.08 in)
- Weight
- 800 gr (1.8 lbs)
- Form factor
- Mobile
- Manufactured
- Between 19xx and 19xx in Japan
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- 9K6 packet ready
- Accessories
- -
- RigReference ID
- 2318
- MPN
- ALINCO-DR-000150
Manuals, diagrams and brochures
- Alinco DR-150 Instruction manual PDF - Unknown size, submitted by RigReference
- Alinco DR-150 Service manual PDF - Unknown size, submitted by RigReference
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Alinco DR-150. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic data, today's second-hand price of the Alinco DR-150 is around:
- USD 47.00
These estimates are based on the following prices:
