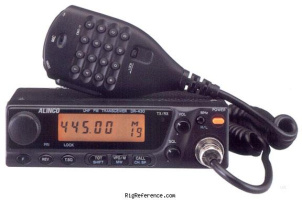

Alinco DR-430

Mobile UHF Transceiver

Specs Manuals (1) Reviews (0) Prices (0) Compare

Find Alinco DR-430 rigs and spare parts on eBay

The Alinco DR-430 is a Mobile UHF Transceiver. It covers 430-440 MHz (Europe) / 440-450 MHz (USA) for both transmit and receive. The RF output power is selectable between High: 50 W and Low: 5 W. The DR-430 requires 13.8V DC power. Dimensions are 40 × 140 × 154 mm. Current drain in receive mode is < 800 mA (squelched) and 3.5-10.5 A in transmit mode. The transceiver weighs 860 gr.

General characteristics

HAM bands: 70cm
Frequency stability: ?
Tuning steps: ?
Memories: ?

Receiver

RX-range: 430-440 MHz (Europe)
440-450 MHz (USA)
Modulations: FM
Sensitivity: -16 dBu for 12 dB SINAD
Selectivity: More than 6 kHz (-6 dB), Less than 15 kHz (-60 dB)
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: ?
Audio output: ?

Transmitter

TX-range: 430-440 MHz (Europe)
440-450 MHz (USA)
Modulations: FM
RF-output: High: 50 W, Low: 5 W

Connections

Antenna: -
Impedance: 50 Ω
Other: -

Electrical

Power requirements: 13.8V DC
Current drain RX: < 800 mA (squelched)
TX: 3.5-10.5 A

Physical

Dimensions (w×h×d): 140 × 40 × 154 mm (5.51 × 1.57 × 6.06 in)
Weight: 860 gr (1.9 lbs)
Form factor: Mobile
Manufactured: Between 19xx and 19xx

Other features

Usage: Amateur / Ham radio operators
Features + options: -
Accessories: -
RigReference ID: 2323
MPN: ALINCO-DR-000430

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!

Manuals, diagrams and brochures

: Alinco DR-130/330/430 Instruction manual PDF - Unknown size, submitted by RigReference
