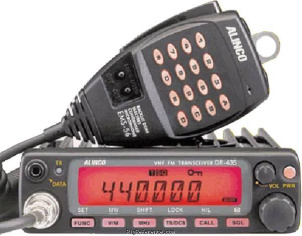

The Alinco DR-435E MKIII is a mobile UHF transceiver. It covers a frequency range of 350-512 MHz for reception and 430-440 MHz for transmission. The radio features a double-conversion superheterodyne receiver system with IF frequencies of 1st: 30.85 MHz and 2nd: 455 KHz. It has an RF output power of High: 35 W, Medium: 20 W, Low: 5 W. The DR-435E MKIII includes 1 memory bank with 100 channels. Dimensions are 40 × 142 × 174 mm. It requires a power supply of 11.7-15.8V DC and draws a current of 400-600 mA while receiving and a maximum of 10 A while transmitting. The radio weighs 1 kg. Features include 1K2/9K6 TNC option (EJ-41U), GPS input for APRS, CTCSS, DCS Theft alarm, and RoHS compliance.
General characteristics
- HAM bands
- 70cm
- Frequency stability
- ?
- Tuning steps
- 5 / 8.33 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 kHz
- Memories
- 100 channels in 1 bank(s)
Receiver
- RX-range
- 350-512 MHz
- Modulations
- FM N-FM DV
- Sensitivity
- 0.25 µV (12 dB SINAD)
- Selectivity
- FM: 12 kHz (-6 dB), 28 kHz (-60 dB)
N-FM: 6 kHz (-6 dB), 14 kHz (-60 dB) - Filters
- ?
- Receiver system
- Double-conversion superheterodyne
- IF-frequencies
- 1st: 30.85 MHz
2nd: 455 KHz - Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 430-440 MHz
- Modulations
- FM N-FM DV
- RF-output
- High: 35 W, Medium: 20 W, Low: 5 W
Connections
- Antenna
- -
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 11.7-15.8V DC
- Current drain RX
- 400-600 mA
- TX
- Max 10 A
Physical
- Dimensions (w×h×d)
- 142 × 40 × 174 mm (5.59 × 1.57 × 6.85 in)
- Weight
- 1,000 gr (2.2 lbs)
- Form factor
- Mobile
- Manufactured
- Between 2007 and 200x
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- 1K2/9K6 TNC option (EJ-41U), GPS input for APRS. CTCSS, DCS Theft alarm. RoHS compliant
- Accessories
- -
- RigReference ID
- 2324
- MPN
- ALINCO-DR-000435E-MKIII
Manuals, diagrams and brochures
- Alinco DR-135/435MK3 FXE Instruction manual PDF - Unknown size, submitted by RigReference
- Alinco DR-135/435MK3 Service manual PDF - Unknown size, submitted by RigReference
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Alinco DR-435E MKIII. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic data, today's second-hand price of the Alinco DR-435E MKIII is around:
- EUR 65.00 ~ EUR 33.00
These estimates are based on the following prices:
