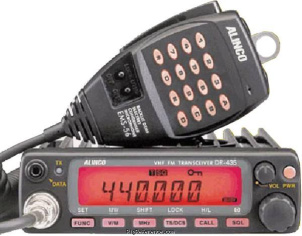

The Alinco DR-435T is a mobile UHF transceiver. It covers 350-512 MHz for receive and 430-450 MHz for transmit. The radio has an RF output of High: 35 W, Medium: 10 W, Low: 5 W. It features 1 memory bank with 100 channels. The DR-435T supports CTCSS, DCS and includes a theft alarm. It also has a 1K2/9K6 TNC option and GPS input for APRS. A 20F3 DV option is available but requires at least two similarly equipped radios. The transceiver requires 11.7-15.8V DC power. Dimensions are 40 × 142 × 174 mm. The current drain is 400-600 mA on receive and a maximum of 10 A on transmit.
General characteristics
- HAM bands
- ?
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- 100 channels in 1 bank(s)
Receiver
- RX-range
- 350-512 MHz
- Modulations
- FM
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 430-450 MHz
- Modulations
- FM
- RF-output
- High: 35 W, Medium: 10 W, Low: 5 W
Connections
- Antenna
- -
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 11.7-15.8V DC
- Current drain RX
- 400-600 mA
- TX
- Max 10 A
Physical
- Dimensions (w×h×d)
- 142 × 40 × 174 mm (5.59 × 1.57 × 6.85 in)
- Weight
- 1,000 gr (2.2 lbs)
- Form factor
- Mobile
- Manufactured
- Between 2001 and 200x
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- 1K2/9K6 TNC option, GPS input for APRS. CTCSS, DCS. Theft alarm. 20F3 DV option (requires at least two similarly equipped radios)
- Accessories
- -
- RigReference ID
- 2325
- MPN
- ALINCO-DR-000435T
Manuals, diagrams and brochures
- Alinco DR-135/235/435 Service manual PDF - Unknown size, submitted by RigReference
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Alinco DR-435T. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic data, today's second-hand price of the Alinco DR-435T is around:
- USD 95.00
