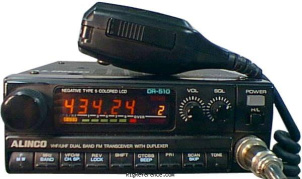

Alinco DR-510T

General characteristics

HAM bands

2m  70cm

Frequency stability

?

Tuning steps

?

Memories

?

Receiver

RX-range

144-148 / 440-450 MHz

Modulations

FM

Sensitivity

?

Selectivity

± 6 kHz @ -6 dB
± 12 kHz @ -60 dB

Filters

?

Receiver system

Double conversion superheterodyne

IF-frequencies

1st: 10.7 MHz (VHF) / 30.825 MHz (UHF)
2nd: 455 kHz

Image rejection

?

Audio output

1.5 W

Transmitter

TX-range

144-148 / 440-450 MHz

Modulations

FM

RF-output

High: 45/35 W, Low: ?/? W

Connections

Antenna

SO-239

Impedance

50Ω

Other

-

Electrical

Power requirements

13.8V DC

Current drain RX

500 mA

TX

10 A max

Physical

Dimensions (w×h×d)

140 × 50 × 205 mm (5.51 × 1.97 × 8.07 in)

Weight

1.70 kg (3.8 lbs)

Form factor

Mobile

Manufactured

Between 199x and 199x

Other features

Usage

Amateur / Ham radio operators

Features + options

-

Accessories

-

RigReference ID

2326

MPN

ALINCO-DR-000510T
