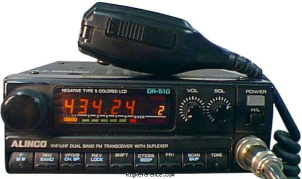

The Alinco DR-510T is a mobile VHF/UHF transceiver. It covers 144-148 / 440-450 MHz for both receive and transmit. The receiver system is a double conversion superheterodyne with IF frequencies of 1st: 10.7 MHz (VHF) / 30.825 MHz (UHF) and 2nd: 455 kHz. RF output is High: 45/35 W, Low: ?/? W. Audio output is 1.5 W. The transceiver requires 13.8V DC power and has a current drain of 500 mA in receive mode and 10 A max in transmit mode. Dimensions are 50 × 140 × 205 mm and it weighs 1.7 kg.
General characteristics
- HAM bands
- 2m 70cm
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 144-148 / 440-450 MHz
- Modulations
- FM
- Sensitivity
- ?
- Selectivity
- ± 6 kHz @ -6 dB
± 12 kHz @ -60 dB - Filters
- ?
- Receiver system
- Double conversion superheterodyne
- IF-frequencies
- 1st: 10.7 MHz (VHF) / 30.825 MHz (UHF)
2nd: 455 kHz - Image rejection
- ?
- Audio output
- 1.5 W
Transmitter
- TX-range
- 144-148 / 440-450 MHz
- Modulations
- FM
- RF-output
- High: 45/35 W, Low: ?/? W
Connections
- Antenna
- SO-239
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- 500 mA
- TX
- 10 A max
Physical
- Dimensions (w×h×d)
- 140 × 50 × 205 mm (5.51 × 1.97 × 8.07 in)
- Weight
- 1.70 kg (3.8 lbs)
- Form factor
- Mobile
- Manufactured
- Between 199x and 199x
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 2326
- MPN
- ALINCO-DR-000510T
Manuals, diagrams and brochures
- Alinco DR-510 Instruction manual PDF - Unknown size, submitted by RigReference
- Alinco DR-510T Service manual PDF - Unknown size, submitted by RigReference
