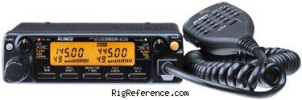

The Alinco DR-605T is a Mobile VHF/UHF Transceiver. It covers 136-174 / 420-471 MHz in receive and 144-148 / 430-450 MHz in transmit. The RF output is High: 50/35 W, Low: 5/5 W. It requires 13.8V DC power. Features include 9K6 packet ready and Twin RX. The weight is 1.1 kg. Current drain is Max 1.2 A in receive and Max 11.5 A in transmit. Dimensions are 47 × 140 × 176 mm.
General characteristics
- HAM bands
- 2m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 136-174 / 420-471 MHz
- Modulations
- FM
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 144-148 / 430-450 MHz
- Modulations
- FM
- RF-output
- High: 50/35 W, Low: 5/5 W
Connections
- Antenna
- -
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- Max 1.2 A
- TX
- Max 11.5 A
Physical
- Dimensions (w×h×d)
- 140 × 47 × 176 mm (5.51 × 1.85 × 6.93 in)
- Weight
- 1.10 kg (2.4 lbs)
- Form factor
- Mobile
- Manufactured
- Between 19xx and 19xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- 9K6 packet ready. Twin RX
- Accessories
- -
- RigReference ID
- 2332
- MPN
- ALINCO-DR-000605T
Manuals, diagrams and brochures
- Alinco DR-605 Instruction manual PDF - Unknown size, submitted by RigReference
- Alinco DR-605 Service manual PDF - Unknown size, submitted by RigReference
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Alinco DR-605T. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic data, today's second-hand price of the Alinco DR-605T is around:
- USD 59.00
These estimates are based on the following prices:
