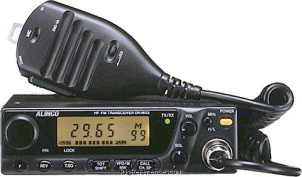

The Alinco DR-M03SX is an affordable way to enjoy the exciting world of 10 meters FM. This amateur radio FM mobile transceiver, with the aid of repeaters, will you to operate long distances when propagation permits. Catch sporadic E openings and more! The DR-M03SX has a 50 tone CTCSS encoder built in. Transmit frequency range is 28.000 - 29.700 MHz. Output is selectable at 10 watts or 1 watt. There is an external speaker jack on the rear panel. Supplied with EMS-5A up-down hand mic. Requires 13.8 V DC at 3 amps.
General characteristics
- HAM bands
- 10m
- Frequency stability
- ?
- Tuning steps
- 25 kHz
- Memories
- 101 channels in 1 bank(s)
Receiver
- RX-range
- 28.0-29.7 MHz
- Modulations
- FM
- Sensitivity
- FM: -12 dB µV @ 12 dB SINAD
- Selectivity
- ± 5 kHz at -6 dB
- Filters
- ?
- Receiver system
- Dual-Conversion Superheterodyne
- IF-frequencies
- 1st: 10.7 MHz
2nd: 455 kHz - Image rejection
- ?
- Audio output
- More than 2.5 Watts @8 ohms, 10% THD
Transmitter
- TX-range
- 28.0-29.7 MHz
- Modulations
- FM
- RF-output
- High: 10 W, Low: 1 W
Connections
- Antenna
- SO-239
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- 800 mA
- TX
- 3 A max
Physical
- Dimensions (w×h×d)
- 144 × 40 × 115 mm (5.67 × 1.57 × 4.53 in)
- Weight
- 680 gr (1.5 lbs)
- Form factor
- Mobile
- Manufactured
- Between 19xx and 19xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Repeater offset. CTCSS option.
- Accessories
- -
- RigReference ID
- 2339
- MPN
- ALINCO-DR-M000003SX
Manuals, diagrams and brochures
- Alinco DR-03/06 Instruction manual PDF - Unknown size, submitted by RigReference
- Alinco DR-M03SX/DR-M06TH Service Manual PDF - 1.36 MB, submitted by RigReference
