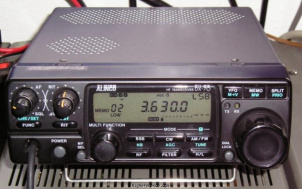

The Alinco DX-70TH is a desktop HF/VHF transceiver. It covers 0.15-30 / 50-54 MHz in receive and 10-160 m + WARC / 50-54 MHz in transmit. The RF output is 100W PEP (AM: 40W PEP). It features a detachable panel, CTCSS, 1 memory bank with 100 channels. Power requirements are 13.8V DC. Dimensions are 58 × 178 × 230 mm. Current drain is 0.8-1 A in receive and max 25A in transmit.
General characteristics
- HAM bands
- 160m 80m 60m 40m 30m (WARC) 20m 17m (WARC) 15m 12m (WARC) 11m (CB) 6m 10m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- 100 channels in 1 bank(s)
Receiver
- RX-range
- 0.15-30 / 50-54 MHz
- Modulations
- AM FM CW SSB
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- Better than 70 dB
- Audio output
- ?
Transmitter
- TX-range
- 10-160 m + WARC / 50-54 MHz
- Modulations
- AM FM CW SSB
- RF-output
- 100 W/100 W (AM: 40/40 W)
Connections
- Antenna
- SO-239
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- 0.8-1 A
- TX
- Max 25 A
Physical
- Dimensions (w×h×d)
- 178 × 58 × 230 mm (7.01 × 2.28 × 9.06 in)
- Weight
- 2.70 kg (6.0 lbs)
- Form factor
- Base Station
- Manufactured
- Between 1997 and 19xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Detachable panel. CTCSS.
- Accessories
- -
- RigReference ID
- 2344
- MPN
- ALINCO-DX-000070TH
Manuals, diagrams and brochures
- Alinco DX-70 Instruction manual PDF - Unknown size, submitted by RigReference
- Alinco DX-70TH Service manual PDF - Unknown size, submitted by RigReference
- Upload relevant documents
Reviews & stories
| Rating | Title | Submitted |
|---|---|---|
| Radio aquecendo ao ligar | 3 years ago by motavitor31 | |
| Tough mobile rig | 11 years ago by W4FJE | |
| Practical mobile rig | 12 years ago by KC5MO | |
| Good all purpose radio | 14 years ago by DMW |
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Alinco DX-70TH. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic data, today's second-hand price of the Alinco DX-70TH is around:
- EUR 139.00
- USD 412.00 ~ USD 52.00
These estimates are based on the following prices:
