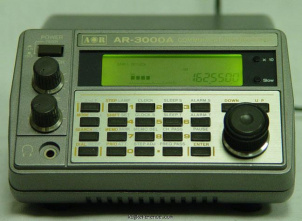

AOR AR-3000A

Desktop HF/VHF/UHF Scanner / receiver

Specs Manuals (1) Reviews (0) Prices (5) Compare

Find AOR AR-3000A rigs and spare parts on eBay

The AOR AR-3000A is a desktop HF/VHF/UHF scanner/receiver covering 0.1-2036 MHz with tuning steps of 50 Hz to 1000 kHz. It has 4 memory banks with 400 channels, requires 13.8V DC power and draws 300~500mA in receive mode. The AOR AR-3000A features an RS232 port and weighs 1.2 kg. Dimensions are 80 × 138 × 120 mm excluding projections.

General characteristics

HAM bands: 6m
Frequency stability: ?
Tuning steps: 50 Hz - 1000 kHz
Memories: 400 channels in 4 bank(s) @ 50 channels/second

Receiver

RX-range: 0.1-2036 MHz
Modulations: AM N-FM W-FM CW USB LSB
Sensitivity: ?
Selectivity: ?
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: ?
Audio output: ?

Connections

Antenna: BNC
Impedance: 50 Ω
Other: -

Electrical

Power requirements: 13.8V DC
Current drain RX: 300~500mA
TX: -

Physical

Dimensions (w×h×d): 138 × 80 × 120 mm (5.43 × 3.15 × 4.72 in) excluding projections
Weight: 1.20 kg (2.6 lbs)
Form factor: Base Station
Manufactured: Between 1989 and 199x

Other features

Usage: Amateur / Ham radio operators
Features + options: RS232 port
Accessories: -
RigReference ID: 2357
MPN: AOR-AR-003000A

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!

Manuals, diagrams and brochures

: AOR AR-3000A Instruction Manual PDF - 1.96 MB, submitted by Gerd

: Upload relevant documents

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used AOR AR-3000A. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the AOR AR-3000A is around:

EUR 477.00
USD 201.00 ~ USD 131.00

Price History Chart

These estimates are based on the following prices:

Year	Historic price	Condition	Submitted by
2021	EUR 500.00	Used / Okay	SWL_de
2019	USD 160.00	Used / Good	eBay
2018	USD 280.00	Used / Mint	eBay
2013	USD 299.95	Used / Good	universal-radio
2010	USD 282.76	Used / Good	eBay
