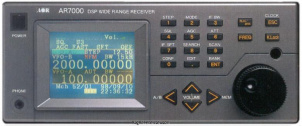

The AOR AR-7000 is a HF/VHF/UHF Scanner / receiver. It covers 0.1-2000 MHz and has 15 memory banks with 1500 channels. Features include a 3.1" color LCD, spectrum display, RS232C, DSP & IR remote controller. The AR-7000 requires 13.8V DC and draws a maximum of 1.5 A in receive mode. Dimensions are 90 × 220 × 240 mm and the unit weighs 3.5 kg.
General characteristics
- HAM bands
- ?
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- 1500 channels in 15 bank(s)
Receiver
- RX-range
- 0.1-2000 MHz
- Modulations
- AM FM W-FM CW SSB
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Connections
- Antenna
- -
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- Max 1.5 A
- TX
- -
Physical
- Dimensions (w×h×d)
- 220 × 90 × 240 mm (8.66 × 3.54 × 9.45 in)
- Weight
- 3.50 kg (7.7 lbs)
- Form factor
- Base Station
- Manufactured
- Between 199x and 199x
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- 3.1" color LCD. Spectrum display, RS232C, DSP & IR remote controller.
- Accessories
- -
- RigReference ID
- 2360
- MPN
- AOR-AR-007000
Manuals, diagrams and brochures
- AOR AR-7000 Instruction Manual PDF - 157.0 kB, submitted by Gerd
