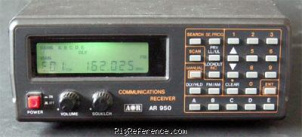

The AOR AR-950 is a desktop VHF/UHF scanner/receiver. It covers 68-88 / 108-174 / 220-390 / 406-470 / 830-950 MHz (Europe). It features 1 memory bank with 100 channels and requires 13.8V DC power. Image rejection is 30 dB @ 120 MHz, 11 dB @ 935 MHz.
General characteristics
- HAM bands
- ?
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- 100 channels in 1 bank(s) @ 15 channels/second
Receiver
- RX-range
- 68-88 / 108-174 / 220-390 / 406-470 / 830-950 MHz (Europe)
- Modulations
- AM FM
- Sensitivity
- Better than 0.3 µV (12 dB SINAD)
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- 30 dB @ 120 MHz, 11 dB @ 935 MHz
- Audio output
- ?
Connections
- Antenna
- BNC
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- ?
- TX
- -
Physical
- Dimensions (w×h×d)
- ?
- Weight
- ?
- Form factor
- Base Station
- Manufactured
- Between 19xx and 19xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 2370
- MPN
- AOR-AR-000950
Manuals, diagrams and brochures
- AOR LA-380 Loop Antenna Manual (Italian) PDF - 184.8 kB, submitted by saverio
- AOR AR-950 Instruction Manual PDF - 341.6 kB, submitted by saverio
- AOR AR-950 Discriminator Output Mod JPEG - 468.2 kB, submitted by RigReference
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used AOR AR-950. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic data, today's second-hand price of the AOR AR-950 is around:
- USD 66.00 ~ USD 25.00
