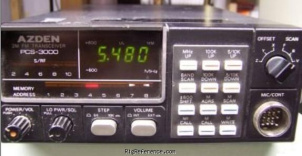

Azden PCS-3000

Mobile VHF Transceiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

Find Azden PCS-3000 rigs and spare parts on eBay

The Azden PCS-3000 is a mobile VHF transceiver. It covers 144-146 MHz (Europe) or 144-148 MHz (USA) for both reception and transmission. The RF output power is selectable between 25W and 5W. It features 1 memory bank with 8 channels. Power requirements are 13.8V DC. The current drain is a maximum of 700 mA while receiving and 5A while transmitting. Dimensions are 66 × 158 × 246 mm.

General characteristics

HAM bands: 2m
Frequency stability: ?
Tuning steps: ?
Memories: 8 channels in 1 bank(s)

Receiver

RX-range: 144-146 MHz (Europe)
144-148 MHz (USA)
Modulations: FM
Sensitivity: ?
Selectivity: ?
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: ?
Audio output: ?

Transmitter

TX-range: 144-146 MHz (Europe)
144-148 MHz (USA)
Modulations: FM
RF-output: High: 25 W, Low: 5 W

Connections

Antenna: SO-239
Impedance: 50 Ω
Other: -

Electrical

Power requirements: 13.8V DC
Current drain RX: Max 700 mA
TX: Max 5 A

Physical

Dimensions (w×h×d): 158 × 66 × 246 mm (6.22 × 2.60 × 9.69 in)
Weight: 2.50 kg (5.5 lbs)
Form factor: Mobile
Manufactured: Between 1981 and 19xx

Other features

Usage: Amateur / Ham radio operators
Features + options: -
Accessories: -
RigReference ID: 2420
MPN: AZDEN-PCS-003000
