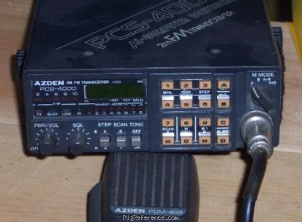

The Azden PCS-4000 is a mobile VHF transceiver. It covers 144-148 MHz for both reception and transmission with 12.5 kHz tuning steps. The RF output power is selectable between High: 25 W and Low: 5 W. It features 1 memory bank with 16 channels. The radio requires 13.8V DC power and has a maximum current drain of 5 A during transmission. Dimensions are 50 × 140 × 172 mm.
General characteristics
- HAM bands
- 2m
- Frequency stability
- ?
- Tuning steps
- 12.5 kHz
- Memories
- 16 channels in 1 bank(s)
Receiver
- RX-range
- 144-148 MHz
- Modulations
- FM
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 144-148 MHz
- Modulations
- FM
- RF-output
- High: 25 W, Low: 5 W
Connections
- Antenna
- SO-239
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- ?
- TX
- Max 5 A
Physical
- Dimensions (w×h×d)
- 140 × 50 × 172 mm (5.51 × 1.97 × 6.77 in)
- Weight
- ?
- Form factor
- Mobile
- Manufactured
- Between 1983 and 19xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 2421
- MPN
- AZDEN-PCS-004000
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Azden PCS-4000. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the Azden PCS-4000 in Good condition is around:
- GBP 300
- USD 226
These estimates are based on the following prices:
