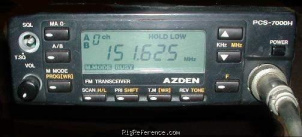

The Azden PCS-7000H is a mobile VHF transceiver. It covers 118-174 MHz for receive and 140-150 MHz for transmit. The radio has an RF output of High: 50 W, Low: 10 W and features CTCSS encoder. It offers 2 memory banks with a total of 20 channels. Power requirements are 13.8V DC. Current drain is Max 0.6 A in receive mode and Max 10 A in transmit mode. The transceiver weighs 1.36 kg and measures 51 × 138 × 140 mm.
General characteristics
- HAM bands
- 2m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- 20 channels in 2 bank(s)
Receiver
- RX-range
- 118-174 MHz
- Modulations
- AM FM
- Sensitivity
- AM: <1 µV (10 dB S/N)
FM: <0.19 µV (12 dB SINAD) - Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 140-150 MHz
- Modulations
- FM
- RF-output
- High: 50 W, Low: 10 W
Connections
- Antenna
- SO-239
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- Max 0.6 A
- TX
- Max 10 A
Physical
- Dimensions (w×h×d)
- 138 × 51 × 140 mm (5.43 × 2.01 × 5.51 in)
- Weight
- 1.36 kg (3.0 lbs)
- Form factor
- Mobile
- Manufactured
- Between 199x and 199x
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- CTCSS encoder
- Accessories
- -
- RigReference ID
- 2431
- MPN
- AZDEN-PCS-007000H
Manuals, diagrams and brochures
- Azden Pcs7000H Manual PDF - 880.9 kB, submitted by Mark Andrews
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Azden PCS-7000H. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic data, today's second-hand price of the Azden PCS-7000H is around:
- USD 47.00 ~ USD 39.00
These estimates are based on the following prices:
