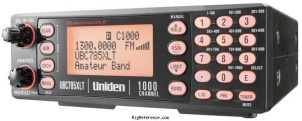

Uniden-Bearcat UBC785XLT

General characteristics

HAM bands

?

Frequency stability

?

Tuning steps

5 / 6.25 / 7.5 / 8.33 / 10 / 12.5 / 25 / 50 / 100 kHz

Memories

1000 channels in 10 bank(s) @ 100 channels/second

Receiver

RX-range

25-512 / 806-960 / 1240-1300 MHz

Modulations

AM   FM   N-FM   W-FM

Sensitivity

FM: 0.4 µV (12 dB SINAD)

Selectivity

?

Filters

?

Receiver system

? conversion superheterodyne

IF-frequencies

?

Image rejection

?

Audio output

?

Connections

Antenna

BNC

Impedance

50 Ω

Other

-

Electrical

Power requirements

13.8V DC

Current drain RX

Max 700 mA

TX

-

Physical

Dimensions (w×h×d)

177 × 69 × 168 mm (6.97 × 2.72 × 6.61 in)

Weight

1.33 kg (2.9 lbs)

Form factor

Mobile

Manufactured

Between 2006 and 200x in China (designed in Japan)

Other features

Usage

Amateur / Ham radio operators

Features + options

CTCSS & DCS. Alpha-tags RS-232C

Accessories

-

RigReference ID

2469

MPN

UNIDEN-BEARCAT-UBC000785XLT

Manuals, diagrams and brochures

Uniden BC785 Programming Control Codes (v. 1.11) PDF - Unknown size, submitted by RigReference



Upload relevant documents

Reviews & stories

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Uniden-Bearcat UBC785XLT. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Uniden-Bearcat UBC785XLT is around:

• EUR 17.00
• USD 17.00

Price History Chart

These estimates are based on the following prices:
