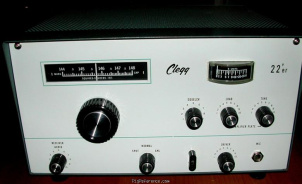

The Clegg 22'er is a desktop VHF transceiver. It covers 143.8-148.2 MHz for both receive and transmit. The transmitter utilizes XTAL for frequency control with an optional VFO. RF output is 20 W (input) and audio output is through an internal speaker. Power requirements are 13.8V DC or mains.
General characteristics
- HAM bands
- 2m
- Frequency stability
- ?
- Tuning steps
- Rx: Continuous, Tx: XTAL
- Memories
- None
Receiver
- RX-range
- 143.8-148.2 MHz
- Modulations
- AM
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- XTAL for TX (VFO option) 12 tubes
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- Internal speaker
Transmitter
- TX-range
- 143.8-148.2 MHz
- Modulations
- AM
- RF-output
- 20 W (input)
Connections
- Antenna
- -
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC or mains
- Current drain RX
- ?
- TX
- ?
Physical
- Dimensions (w×h×d)
- ?
- Weight
- ?
- Form factor
- Base Station
- Manufactured
- Between 1965 and 196x in USA
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 2483
- MPN
- CLEGG-000022'ER
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Clegg 22'er. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic data, today's second-hand price of the Clegg 22'er is around:
- USD 2.00
These estimates are based on the following prices:
