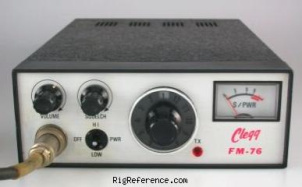

The Clegg FM-76 is a VHF transceiver. It covers 220-225 MHz for both receive and transmit. The RF output is selectable between High: 10 W and Low: 1 W. It requires 13.8V DC power. Current drain during receive is 220-500 mA and maximum current drain during transmit is 3.1 A.
General characteristics
- HAM bands
- ?
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 220-225 MHz
- Modulations
- FM
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- XTAL
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 220-225 MHz
- Modulations
- FM
- RF-output
- High: 10 W, Low: 1 W
Connections
- Antenna
- -
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- 220-500 mA
- TX
- Max 3.1 A
Physical
- Dimensions (w×h×d)
- ?
- Weight
- ?
- Form factor
- Unknown
- Manufactured
- Between 19xx and 19xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 2490
- MPN
- CLEGG-FM-000076
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Clegg FM-76. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
These estimates are based on the following prices:
