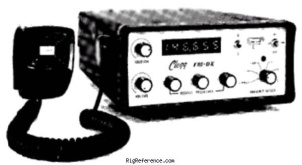

The Clegg FM-DX is a desktop VHF transceiver. It covers 143.5-148.5 MHz for both receive and transmit. The RF output power ranges from 0.5 to 35 W. It requires 13.8V DC power. Current drain is 1.3 A in receive mode and a maximum of 10 A in transmit mode.
General characteristics
- HAM bands
- ?
- Frequency stability
- ?
- Tuning steps
- 5 kHz
- Memories
- ?
Receiver
- RX-range
- 143.5-148.5 MHz
- Modulations
- FM
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 143.5-148.5 MHz
- Modulations
- FM
- RF-output
- 0.5-35 W
Connections
- Antenna
- SO-239
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- 1.3 A
- TX
- Max 10 A
Physical
- Dimensions (w×h×d)
- ?
- Weight
- ?
- Form factor
- Base Station
- Manufactured
- Between 19xx and 19xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 2492
- MPN
- CLEGG-FM-DX
Manuals, diagrams and brochures
- Clegg FM-DX Owner's Manual PDF - 1.36 MB, submitted by Minicowman
