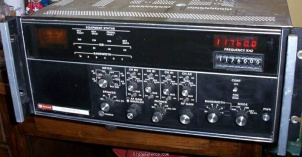

Collins HF-8054A

General characteristics

HAM bands

?

Frequency stability

?

Tuning steps

0.01 kHz

Memories

?

Receiver

RX-range

0.25-30 MHz

Modulations

AM   FM   CW   SSB   ISB

Sensitivity

?

Selectivity

?

Filters

?

Receiver system

?

IF-frequencies

?

Image rejection

?

Audio output

?

Connections

Antenna

-

Impedance

50 Ω

Other

-

Electrical

Power requirements

Mains

Current drain RX

Max 80 W

TX

-

Physical

Dimensions (w×h×d)

483 × 222 × 520 mm (19.02 × 8.74 × 20.47 in)

Weight

20.00 kg (44.1 lbs)

Form factor

Base Station

Manufactured

Between 1982 and 1986 in Canada

Other features

Usage

Amateur / Ham radio operators

Features + options

Remote control.

Accessories

-

RigReference ID

2524

MPN

COLLINS-HF-008054A
