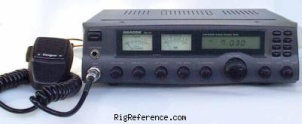

Dragon SS-797

Desktop Shortwave Transceiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

Find Dragon SS-797 rigs and spare parts on eBay

The Dragon SS-797 is a base station transceiver. It covers 7-7.3 MHz for both transmit and receive with a frequency stability of ± 300 Hz. Tuning steps are selectable at 1, 10 or 100 kHz. The SS-797 has an image rejection of ≥ 90 dB. RF output power is FM/SSB: 50 W, AM: 20 W. Audio output is 3 W into an 8 ohm speaker. It features 1 memory bank with 5 channels. Power requirements are 12-16 V DC. The current drain in receive is 1.5 A and 10 A max in transmit. Dimensions are 85 × 300 × 240 mm.

General characteristics

HAM bands: 40m
Frequency stability: ± 300 Hz
Tuning steps: 1 / 10 / 100 kHz
Memories: 5 channels in 1 bank(s)

Receiver

RX-range: 7-7.3 MHz
Modulations: AM FM SSB
Sensitivity: AM: 0.5 µV
FM/SSB: 0.25 µV
Selectivity: ?
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: ≥ 90 dB
Audio output: 3 W, 8 ohm

Transmitter

TX-range: 7-7.3 MHz
Modulations: AM FM SSB
RF-output: FM/SSB: 50 W, AM: 20 W

Connections

Antenna: SO-239
Impedance: 50Ω
Other: -

Electrical

Power requirements: 12-16 V DC
Current drain RX: 1.5 A
TX: 10 A max

Physical

Dimensions (w×h×d): 300 × 85 × 240 mm (11.81 × 3.35 × 9.45 in)
Weight: 3.40 kg (7.5 lbs)
Form factor: Base Station
Manufactured: Between 19xx and 19xx in Korea

Other features

Usage: Amateur / Ham radio operators
Features + options: -
Accessories: -
RigReference ID: 2565
MPN: DRAGON-SS-000797
