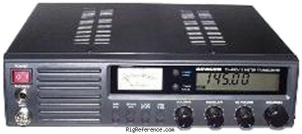

Dragon SY-495V

2m Transceiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

Find Dragon SY-495V rigs and spare parts on eBay

The Dragon SY-495V is a 2m transceiver. The frequency range for reception is 136-174 MHz and for transmission is 144-146 MHz. Tuning steps are selectable from 5 / 10 / 12.5 / 15 / 20 / 25 kHz. RF output power is selectable at 10 / 50 W. Audio output is 2.5 W. It includes 1 memory bank with 10 channels. The transceiver features CTCSS option. Power requirements are 13.8V DC or mains. Dimensions are 74 × 282 × 209 mm and the weight is 3.8 kg. Current drain during transmit is 10 A max.

General characteristics

HAM bands: 2m
Frequency stability: ?
Tuning steps: 5 / 10 / 12.5 / 15 / 20 / 25 kHz
Memories: 10 channels in 1 bank(s)

Receiver

RX-range: 136-174 MHz
Modulations: FM
Sensitivity: ?
Selectivity: ?
Filters: ?
Receiver system: ?
IF-frequencies: 1st: 21.4 MHz
2nd: 455 kHz
Image rejection: ?
Audio output: 2.5 W

Transmitter

TX-range: 144-146 MHz
Modulations: FM
RF-output: 10 / 50 W

Connections

Antenna: SO-239
Impedance: 50Ω
Other: -

Electrical

Power requirements: 13.8V DC or mains
Current drain RX: ?
TX: 10 A max

Physical

Dimensions (w×h×d): 282 × 74 × 209 mm (11.10 × 2.91 × 8.23 in)
Weight: 3.80 kg (8.4 lbs)
Form factor: Base Station
Manufactured: Between 19xx and 19xx

Other features

Usage: Amateur / Ham radio operators
Features + options: CTCSS option
Accessories: -
RigReference ID: 2567
MPN: DRAGON-SY-000495V
