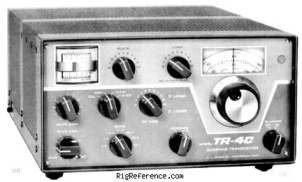

The Drake TR-4C is an HF amateur band transceiver covering 80 through 10 meters (some sources say 160-10 m) in seven 600 kHz ranges. Modes include USB, LSB, CW and AM. Input power is 300 watts PEP SSB, 260 watts AM/SSB. The accurate VFO provides 1 kHz analog dial. VOX or PTT may be selected. Other refinements include: CW side tone oscillator, crystal calibrator, VFO indicator light, CW semi break-in, VOX or PTT for AM or SSB, heavy irritated cadmium plated chassis, separate USB and LSB filters and 1.7:1 filter shape factor. The right panel has various jacks including: headphones, mic and key.

General characteristics

HAM bands
80m  40m  20m  15m  10m
Frequency stability
Overall drift after warm-up: less than 100 Hz
Tuning steps
Continuous
Memories
?

Receiver

RX-range
80-10 m (no WARC)
Modulations
AM   CW   USB   LSB
Sensitivity
<0,5 µV (10 dB S+N/N)
Selectivity
2.1 kHz (-6 dB)
3.6 kHz (-60 dB)
Filters
?
Receiver system
?
IF-frequencies
1st: 9 MHz
Image rejection
> 60 dB
Audio output
?

Transmitter

TX-range
80-10 m (no WARC)
Modulations
AM   CW   USB   LSB
RF-output
SSB: 300 W PEP, AM: 260 W PEP (both input)

Connections

Antenna
SO-239
Impedance
50Ω
Other
-

Electrical

Power requirements
Mains
Current drain RX
?
TX
?

Physical

Dimensions (w×h×d)
?
Weight
?
Form factor
Base Station
Manufactured
Between 19xx and 19xx

Other features

Usage
Amateur / Ham radio operators
Features + options
-
Accessories
-
RigReference ID
2603
MPN
DRAKE-TR-000004C

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Drake TR-4C. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Drake TR-4C is around:

  • USD 24.00 ~ USD 47.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
2020 USD 50.00 Used / Okay Ashy Asher
2006 USD 325.00 Used / Good DMW
