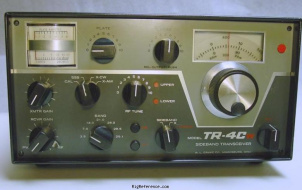

The Drake TR-4CW is an HF transceiver covering 80-10 meters for both receive and transmit. Maximum RF output is 150 W. Dimensions are 140 × 273 × 365 mm. The radio weighs 7.3 kg and operates on mains power.
General characteristics
- HAM bands
- 80m 40m 20m 15m 10m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 80-10 m
- Modulations
- AM CW SSB
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 80-10 m
- Modulations
- AM CW SSB
- RF-output
- 150 W
Connections
- Antenna
- SO-239
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- Mains
- Current drain RX
- ?
- TX
- ?
Physical
- Dimensions (w×h×d)
- 273 × 140 × 365 mm (10.75 × 5.51 × 14.37 in)
- Weight
- 7.30 kg (16.1 lbs)
- Form factor
- Unknown
- Manufactured
- Between 1978 and 19xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 2604
- MPN
- DRAKE-TR-000004CW
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Drake TR-4CW. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic data, today's second-hand price of the Drake TR-4CW is around:
- EUR 60.00
- USD 70.00
These estimates are based on the following prices:
